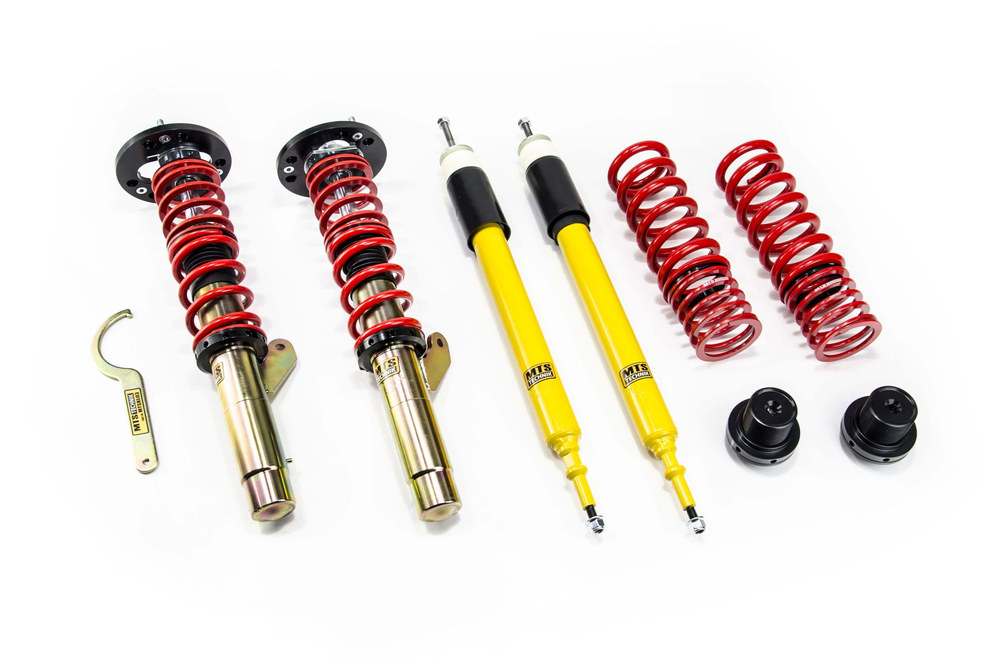

MTS Technik Coilover komplekt BMW 3 E90
€956.72 (sis. KM)
Sobivused ja tehnilised andmed on toodud allpool.
Tehnilised andmed
| Tooteseeria | Stance / Gold / Camber plaatidega |
|---|---|
| Madaldus ees | 20 - 65 mm |
| Madaldus taga | 0 - 40 mm |
| Esitelje koormus | kuni 1090 kg |
| Tagatelje koormus | kuni 1135 kg |

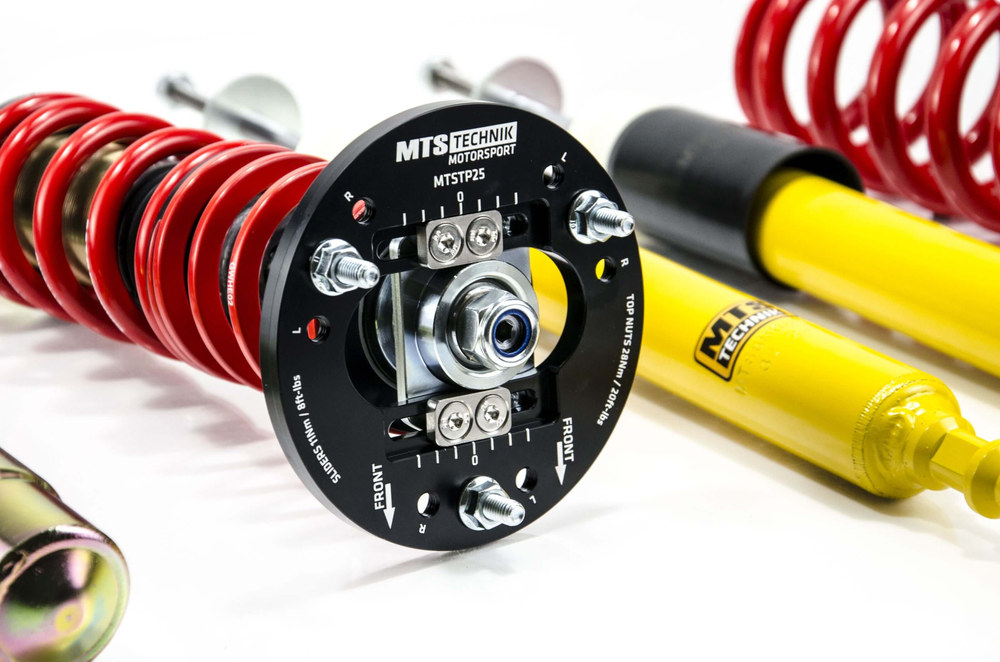

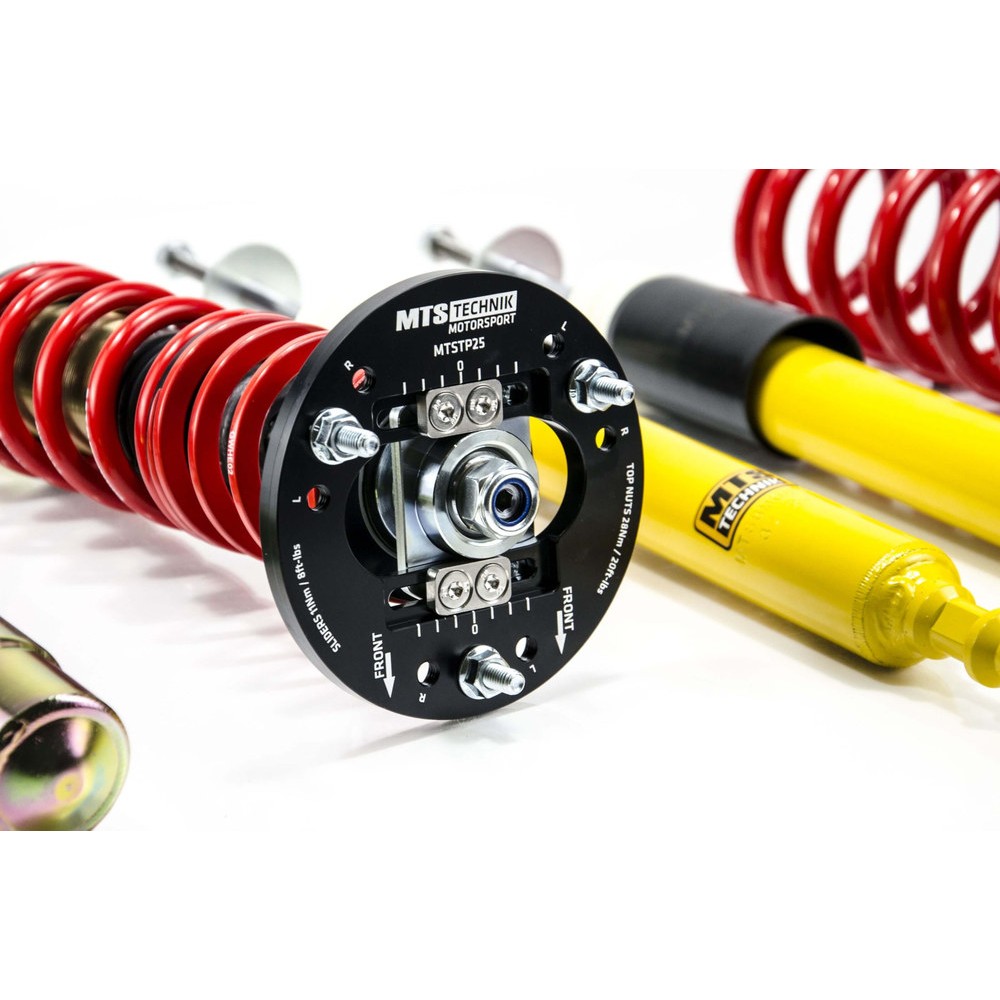

| Camber-plaadid ees | Jah |
| Camber-plaadid taga | Puudub |
| TÜV sertifikaat | Puudub |
Sobib järgmistele autodele
| Mark | Mudel | Mootorid | Aastad | Vedu |
|---|---|---|---|---|
| BMW | 3 (E90) | 320 d xDrive / 325 i xDrive / 325 xi / 330 d xDrive / 330 i xDrive / 330 xd / 330 xi / 335 i xDrive / 335 xi | 02/04 - 12/13 | xDrive |
Tootja paigaldusmärkused
- 21. If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
- 24. During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
- 3. Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
- 32. In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.
- 33. Including M-Technik.
- 73. For easier height adjustment, we recommend removing the height adjustment, changing the position of the spring plate and reinstalling the height adjustment on the vehicle.
